Gison Vacuum Suction Based Drill Stand GPD-233

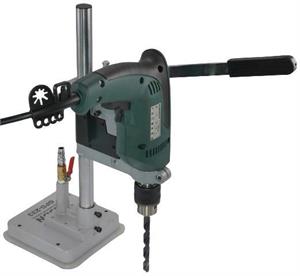

Gison GPD-233 Light Air / Electric Drill vertical drilling auxiliary stand, with the low air consumption, can work with small 1.5 HP (1.1 kw) air compressors without additional Vacuum Pump (Vacuum Generator). Used with an electric drill, it can be quickly attached to the workpiece for drilling through the built-in vacuum suction fixing base. Easy to carry out when going out.

SPECIFICATION

• Used with Air Compressor, no need to use vacuum pump.

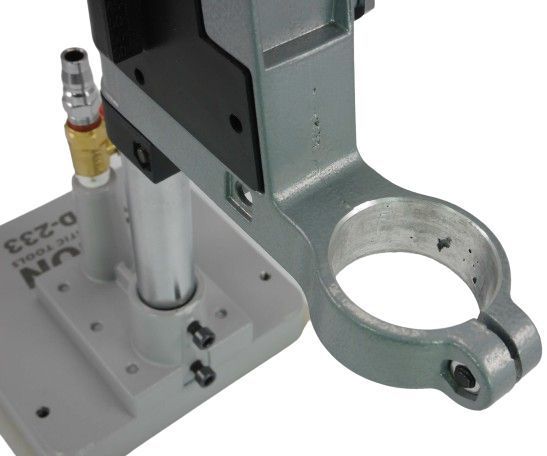

• Clamp Holding Spec: Ø43 mm or 1-11/16"
• Max. Core Drill Bit : 7 Inch
• Max. Drilling Travel : 60 mm or 2-3/8"
• Net Weight : 7 lbs
• Height : 430 mm or 17"
• Vacuum Suction Base Size : 165 x 165 mm or 6.5" x 6.5"
• Working Air Pressure : 6.3 kgf/cm2 (90 psi)
• Air Cons. : 0.08 m3/min (2.75 scfm)
• Lift Capacity : 100 kgs or 220 lbs
• Electric Drill not included

FEATURES

• Novel vacuum suction fixing base can apply to wet and coarse flat surfaces such as cement wall, lumber plywood, stone back, etc.
• The vacuum suction attaches the machine onto surface of wall firmly and directly, without need for extra fixing devices.( It is necessary to confirm that the vacuum suction works indeed onto the surface prior to releasing the machine. )
• The workpiece and the machine are attached firmly and closely by the vacuum suction, so no moving workpiece bothers the worker.
• Without the additional vacuum pump (vacuum generator), ONLY use a general Air Compressor.
• The GPD-233 Drill Stand (Vacuum Suction Type) can replace the Portable Magnetic Drilling Machine and is used on various coarse and flat surface. The Portable Magnetic Drilling Machine can be only used on iron material.
• Lightweight (about 7 lbs). Easy to carry to any job sites.
• With high efficiency and high precision.

APPLICATIONS

• The novel Vacuum Suction Fixing Base of GPD-233 can apply to wet and coarse flat surfaces such as cement wall, lumber plywood, stone back, metal firmly and directly free of extra fixing devices.
• The GPD-233 Drill Stand + Electric Drill can replace the Magnetic Drilling Machine and be used on various coarse and flat surface. The Magnetic Drilling Machine can be only used on iron material.
• Can be used on many different surfaces including stones, metals, concrete and wood.
